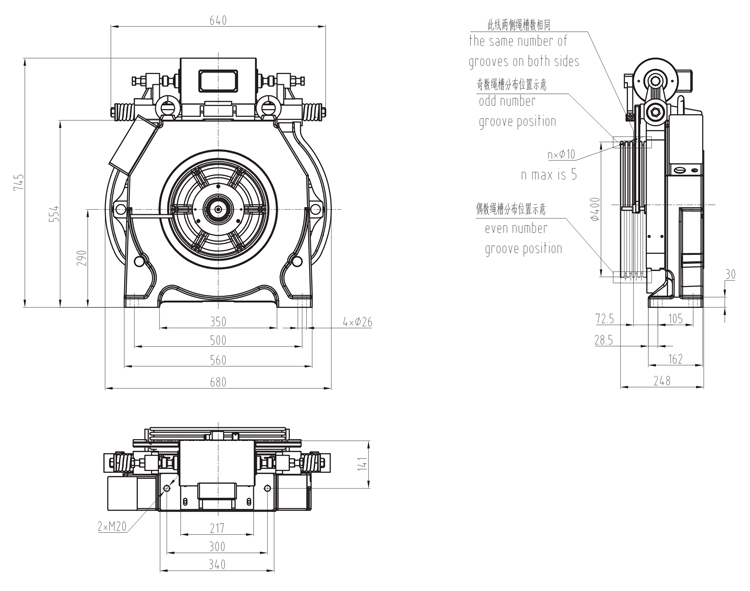

Gearless Traction Machine For 400mm Sheave 32 Poles Block Brake DC110V Brake Voltage 6300kg-1600kg Capacity
Capacity:6300kg~1600kg
Roping:2:1
Single Wrap
Foot Pad Flatness:＜0.5mm
Protection Rating:IP40
Insulation Class:F
Poles:32
Drum Brake
Brake Voltage:DC110V
Full-wave rectification power source for brake
Motor Rated Voltage:AC380V
Duty Cycle:S5-40%
SINGLE WRAP (EXTERNAL ROTOR)
Load
kg |
Speed
m/s |
Rated
Output
kW |
Rated
current
A |
Rated
speed
rpm |
Frequency
Hz |
Sheave
Diameter
mm |
Torque
Nm |
Ropes |
Groove
Dist
mm |
Cut
Angle |
Groove
Angle |
Roping |
Shaft
Load
kg |
Handle wheel |
Remote
Release |
Inertia
kg m^2 |
Weight
kg |
| 630 |
1 |
4.3 |
11 |
95 |
25.3 |
400 |
432 |
4- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 630 |
1.5 |
6.4 |
18 |
143 |
38.1 |
400 |
425 |
4- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 630 |
1.6 |
6.8 |
18 |
153 |
40.8 |
400 |
425 |
4- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 630 |
1.75 |
7.4 |
18 |
167 |
44.5 |
400 |
423 |
4- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 800 |
1.0 |
5.4 |
12.5 |
95 |
25.3 |
400 |
543 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 800 |
1.5 |
8.1 |
22 |
143 |
38.1 |
400 |
540 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 800 |
1.6 |
8.6 |
22 |
153 |
40.8 |
400 |
537 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 800 |
1.75 |
9.6 |
22 |
167 |
44.5 |
400 |
549 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.50 |
305 |
| 800 |
2.0 |
11 |
26.5 |
191 |
50.9 |
400 |
550 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
| 800 |
2.5 |
13.8 |
32.5 |
239 |
63.7 |
400 |
550 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
| 1000 |
1.0 |
6.4 |
15 |
95 |
25.3 |
400 |
640 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
| 1000 |
1.5 |
10 |
24 |
143 |
38.1 |
400 |
665 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
| 1000 |
1.6 |
10.7 |
27.5 |
153 |
40.8 |
400 |
665 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
| 1000 |
1.75 |
11.7 |
27.5 |
167 |
44.5 |
400 |
669 |
5- Φ 10 |
14 |
β=95° |
y=30° |
2:1 |
3,000 |
N |
Y |
3.80 |
310 |
Notes:
1.Brake voltage is Dc110v Other brake voltage please consult engineers
2.DC brake requires step-down transformer in cabinet to guarantee holding voltage is 50% of picking voltage.
3.180°Wrap angle and MRL application
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
