Humanization Design Villa High Speed Elevator 2-6 Person Glass Home Elevator
Your Perfect Life Is Comfortable and Relaxing
The humanization design decorates your noble life space. We enhance your life grade in the times of high & new tech. SUNNY home elevator brings about a more convenient and high-grade life.
It displays the outstanding properties in a limited space. It has no machine room. Extremely small top-floor height can match with various old and new residences. Relying on the standard track installation system, the elevator can be installed more quickly and conveniently. In addition, the smooth start and leveling system bring about the rare stable elevator operation.
Therefore you feel more comfortable in the elevator travel.
The Characteristics of Home Elevator
1. No need of traditional machine room, without any construction cost increased. Specially designed rucksack frame for the home elevator with traction ratio 2:1VVVF drive technology, SUNNY home elevator appropriative micro processing control.
2. Slide +roller composite guide shoe
3. The appropriative traction machine bracket is fixed on the guide rail.
The building will not have any load.
4. We apply 220V single-phase home elevator special machine.
5. Automatic special door machine, synchronous timing belt transmission, TUV CE Certification passed.
6. Comply with home Elevator National Standard GB/T21739-2008".

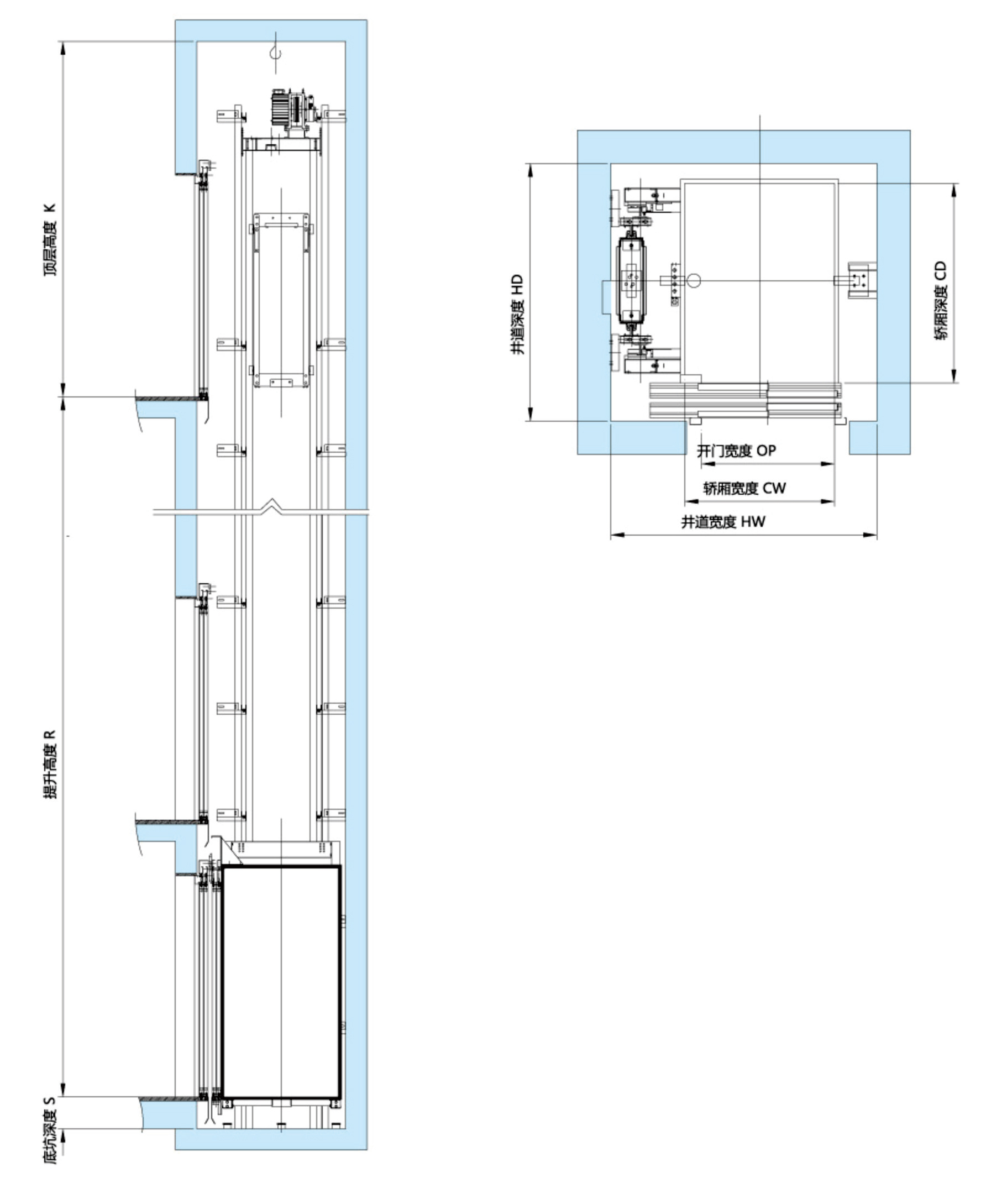

| Load | Speed | Position of Brackets | Car Dimension | Hoistway Dimension | Max No. of Stops | Max Travel (m) | Min Span Between Various Floors | Power KW | Distance of Bracket Guide Rail (mm) |
| DL (kg) | V (m/s) | CW (mm) | CD (mm) | OP (mm) | Min HW (mm) | Max HW (mm) | Min HD (mm) | Max HD (mm) | Min S (mm) | Min K (mm) |
| 250 | 0.4 | By Side | 800 | 1100 | 700 | 1450 | 1600 | 1450 | 1600 | 500 | 3000 | 4 | 12 | 2.6 | 2.2 | 1000 |
| 320 | 0.4 | By Side | 900 | 1200 | 800 | 1550 | 1700 | 1550 | 1700 |
| 400 | 0.4 | By Side | 1000 | 1250 | 800 | 1650 | 1800 | 1600 | 1800 |
Note: Reference only, for detail information, please contact SUNNY elevator.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
