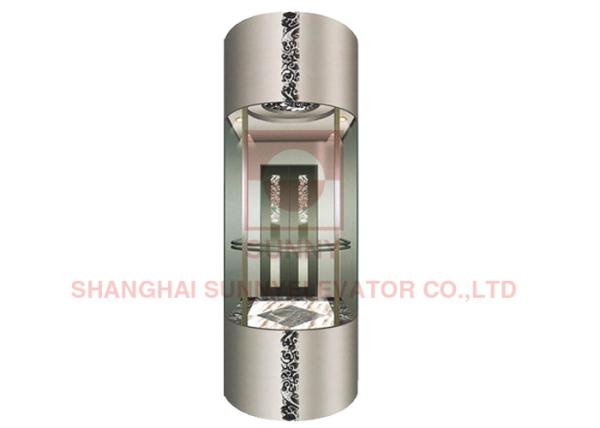

Semicircle Sightseeing Lift 1000kg Transparent Glass Observation Elevator

Name: Semicircle Sightseeing Lift 1000kg Transparent Glass Observation Elevator
Brand: SUNNY
Price: 7000 USD

Semicircle Sightseeing Lift 1000kg Transparent Glass Observation Elevator Manufactures

Brand Name : SUNNY

Model Number : Semicircle Observation Elevator

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1Set

Price : $7000~$12000

Payment Terms : Western Union, T/T, L/C,Paypal

Supply Ability : 500 Set/ Year

Delivery Time : 7-15working days

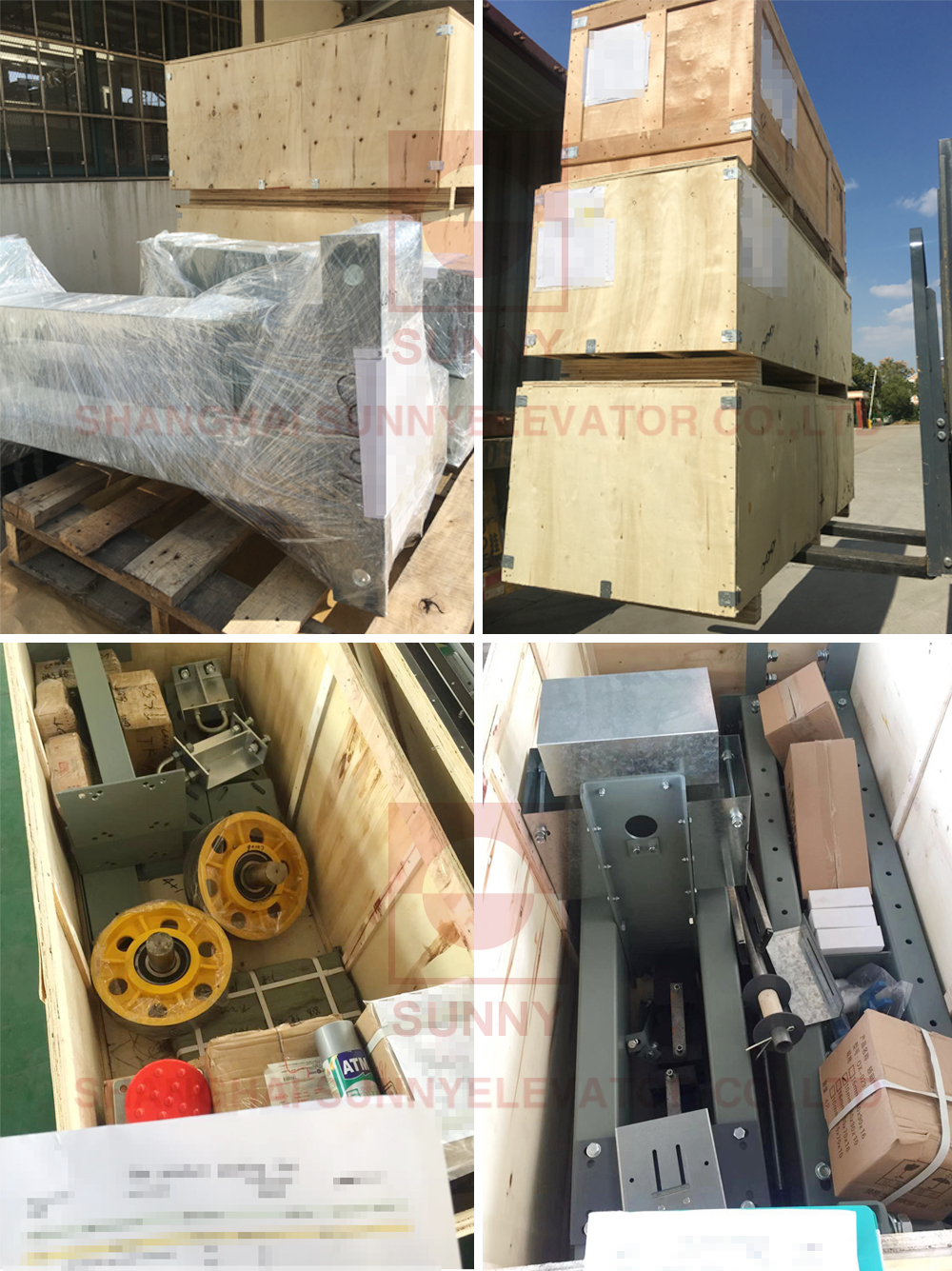

Packaging Details : wooden case

Name : Semicircle Sightseeing Lift

Load : 630~2000kg

Persons : 8~26

Speed : 1.0~2.0m/s

Material : Stainless Steel 304

Warranty : 12 months after shipping

Traction machine : Gearless Traction Machine

Flooring : PVC

Model : Observation Elevator

Type : Observation Elevator

Product name : Observation Elevator

Contact Now

Semicircle Sightseeing Lift 630~2000kg Transparent Glass Observation Elevator

Semicircle machine room/Machine roomless elevator specifications

Persons	Load(kg)	Speed(m/s)	Net size of car(mm)	Net size of door(mm)	Shaft size(mm)			Machine room size(mm)
			C.WxC.DxD.H	2P Central opening	H.WxH.D	HR.H	PIT	MR.WxMR.D	MR.H
8	630	1.0	1100x1600x2300	700x2100	2200x2185	4500	1500	2200x2185	2500
		1.5/1.75				4700	1600
10	800	1.0	1200x1800x2300	800x2100	2300x2355	4500	1500	2300x2355	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
13	1000	1.0	1300x1950x2300	900x2100	2400x2535	4500	1500	2400x2535	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
16	1250	1.0	1400x2150x2300	900x2100	2500x2600	4500	1500	2500x2600	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
18	1350	1.0	1500x2150x2300	1000x2100	2600x2600	4500	1500	2500x2600	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
21	1600	1.0	1500x2450x2300	1000x2100	2600x2900	4500	1500	2600x2900	2500
		1.5/1.75				4700	1600
		2.0				4900	1800
		2.5				5100	2000
26	2000	1.0	1700x2600x2300	1100x2100	2800x3050	4500	1500	2800x3050	2500
		1.5/1.75				4700	1600
		2.0				4900	1800

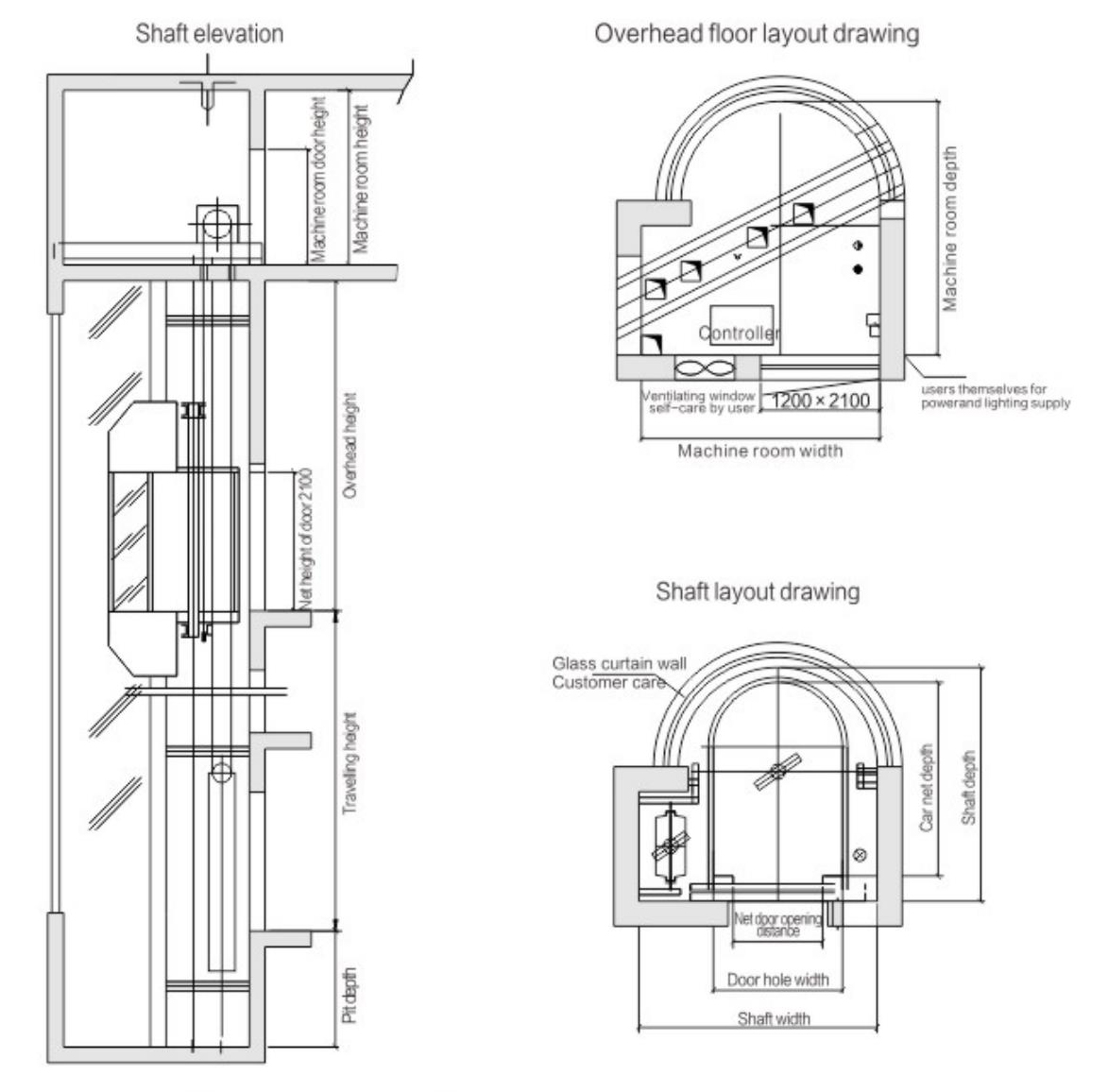

Semicircle Observation Elevator construction layout drawing

Semicircle Sightseeing Lift 1000kg Transparent Glass Observation Elevator

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
