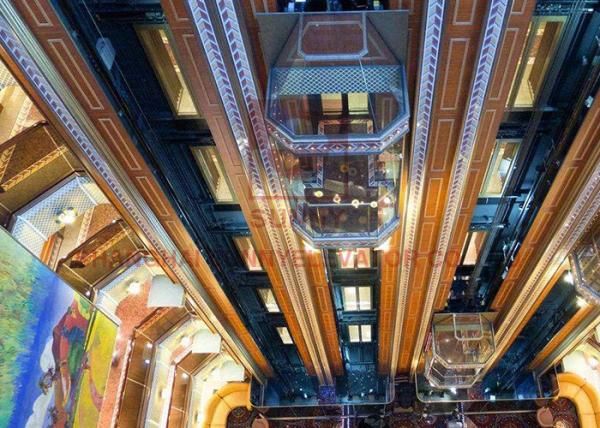

Transparent Panoramic Glass Lift , Comfortable Commercial Elevator For Public
Complexity mastered through simplicity, a transcendental state not restricted by form, an atmosphere " made in Heaven ". Extraordinary views embody the essence of panoramic elevators. Our panoramic elevators are the leading choice for going to the limits, beyond the reach of ordinary people. They are exquisite works of art, like jewels set in the facade of a building, endowing it with individuality and vitality, and enhancing it with a fluid line of beautiful scenery.
Given the intelligent design and diversified expressive style of our panoramic elevators, they can provide you with the sensation of a steady, comfortable ride. Their transparent design, the integration of light and scenery, and the experience of a wonderful sensation of movement instil both enjoyment and novelty. Panoramic elevators are widely used in public places such as commercial -, cultural - and sports centers, tourist sites, hotels and clubhouses.
************************************************
For detail information, please contact us.
************************************************
Machine roomless panoramic elevator construction parameters
| Load(kg) | Speed(m/s) | Car size(mm) | Door opening size(mm) | Hoistway size(mm) | Pit depth(mm) | Top floor height(mm) | Max.travelling height(m) |
| CW*CD*CH | OP*OPH | HW*HD |
| 630 | 1.0 | 1100*1600*2500 | 700*2100 | 2250*2150 | 2000 | 4900 | 50 |
| 1.5 | 1100*1600*2500 | 700*2100 | 2250*2150 | 2100 | 5000 | 75 |
| 1.75 | 1100*1600*2500 | 700*2100 | 2250*2150 | 2200 | 5100 | 90 |
| 800 | 1.0 | 1200*1800*2500 | 800*2100 | 2350*1850 | 2000 | 4900 | 50 |
| 1.5 | 1200*1800*2500 | 800*2100 | 2350*2350 | 2100 | 5000 | 75 |
| 1.75 | 1200*1800*2500 | 800*2100 | 2350*2350 | 2200 | 5100 | 90 |
| 1000 | 1.0 | 1400*1800*2500 | 900*2100 | 2550*2400 | 2000 | 4900 | 50 |
| 1.5 | 1400*1850*2500 | 900*2100 | 2550*2400 | 2100 | 5000 | 75 |
| 1.75 | 1400*1850*2500 | 900*2100 | 2550*2400 | 2200 | 5100 | 90 |
Machine room panoramic elevator construction parameters
| Load(kg) | Speed(m/s) | Car size(mm) | Door opening size(mm) | Hoistway size(mm) | Machine room size
| Pit depth(mm) | Top floor height(mm) | Max.travelling height(m) |
| CW*CD*CH | OP*OPH | HW*HD |
| 630 | 1.0 | 1150*1500*2500 | 800*2100 | 2250*2050 | 2250*2050*2800 | 2000 | 4900 | 50 |
| 1.5 | 2100 | 5000 | 75 |
| 1.75 | 2200 | 5100 | 90 |
| 800 | 1.0 | 1150*1800*2500 | 800*2100 | 2300*2350 | 2300*2350*2800 | 2000 | 4800 | 50 |
| 1.5 | 2100 | 5000 | 75 |
| 1.75 | 2200 | 4100 | 90 |
| 1000 | 1.0 | 1300*1900*2500 | 900*2100 | 2450*2450 | 2450*2450*2800 | 2000 | 4900 | 50 |
| 1.5 | 2100 | 5000 | 75 |
| 1.75 | 2200 | 5100 | 90 |
| 1150 | 1.0 | 1400*2000*2500 | 900*2100 | 2400*2250 | 2400*2550*2800 | 2000 | 4900 | 50 |
| 1.5 | 2100 | 5000 | 75 |
| 1.75 | 2200 | 5100 | 90 |
| 1350 | 1.0 | 1500*2100*2500 | 1000*2100 | 2550*2650 | 2550*2650*2800 | 2000 | 4900 | 50 |
| 1.5 | 2100 | 5000 | 75 |
| 1.75 | 2200 | 5100 | 90 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
